GN 726.1 Control Knobs, black anodized

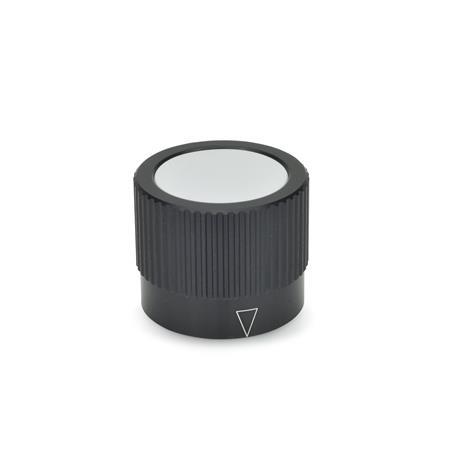

Control Knobs black anodized GN 726.1 thumbnail

Control Knobs black anodized GN 726.1 sketch

Type

A	With arrow
B	Neutral, without indicator point or scale
S	With scale 0...9, 20 graduations

Identification no.

1	With grub screw
2	With collet

Show filter

d₁	d₂ H8 Bore		d₃ Collet	d₄	d₅	d₆	d₇	h₁	h₂	h₃	h₄	Length l	t

22	B 5	-	-	16	14	M 4	20	22	16	4,3	8	12,5	-
27	B 6	-	Z 6	20	18	M 4	25	26	20	4,3	9	14	14
34	B 6	B 8	Z 8	25	23	M 5	32	30	24	4,2	10	15	17
42	B 8	B 10	Z 10	32	30	M 5	40	34	28	4	11	16	20

Filter combination produces no result.

Specification

Aluminum
Anodized, black

Scale (type S) and arrow (type A)
White, engraved with laser precision

Cover
Plastic, light gray

Collet / hexagon nut
Brass

Stainless steel grub screw DIN 916
with internal hexagon and serrated point

ISO Fundamental Tolerances

RoHS

On request

Special graduations
see „How to Order Graduations“

Information

The light gray cover of the control knobs GN 726.1 shrouds the fixing components as well as the shaft end. The cover also lends itself for a logo or other symbols.

The collet version permits a simple adjustment of the types with scale or arrow.

Scale and arrow on the control knobs are indelibly marked and easily legible since the engraved "aluminum colored" numbers contrast with the black anodized surface.

Besides the standard scale (type S) the control knobs can be supplied with any type of graduation.

Regarding design, numbering run, numbering position and numbering sequence of the scale please see the layout for scale knobs on the order sheet „How to Order Graduations“.
