GN 7336 Knurled Screws, threaded stud steel, zinc plated / Stainless Steel

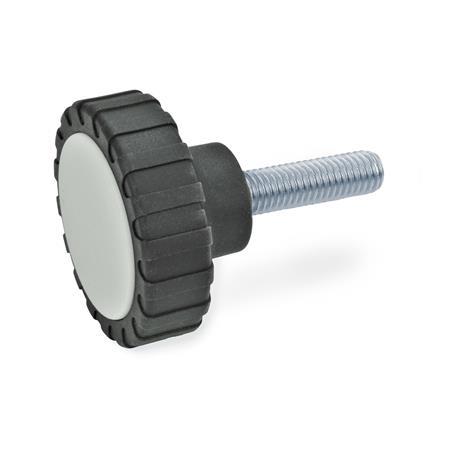

Knurled Screws threaded stud steel zinc plated Stainless Steel GN 7336 thumbnail

Knurled Screws threaded stud steel zinc plated Stainless Steel GN 7336 sketch

Show filter

d₁	d₂	Length l					d₃	h₁	h₂

34	M 6	11	15	20	25	30	16	21	10,5
42	M 8	15	20	25	30	40	19	26	13
42	M 8 x 1	15	20	25	30	-	19	26	13
53	M 10	20	25	30	40	50	24	32	16
53	M 10 x 1	20	25	30	40	-	24	32	16

Filter combination produces no result.

Specification

Plastic
Technopolymer (Polyamide PA)

Glass fiber reinforced
Temperature resistant up to 130 °C
Black, matte finish

Threaded stud

SteelST
Zinc plated, blue passivated
Stainless steelNI AISI 304

Cover cap plastic
Light gray, matte finish

Stainless Steel Characteristics

RoHS

On request

Other thread lengths

Threaded inserts in stainless steel A4

Threaded inserts with left-hand thread

Threaded inserts with further fine threads

Cover cap in further colors

Information

Knurled screws GN 7336 are suitable for a diverse range of applications. Thanks to the use of DIN screws as threaded insert, it is possible to realize other thread lengths, left-hand and fine thread as well as variants of stainless steel A4 even at smaller part volumes. The threaded inserts are fastened in the housing with a tight fit via ultrasound welding.
