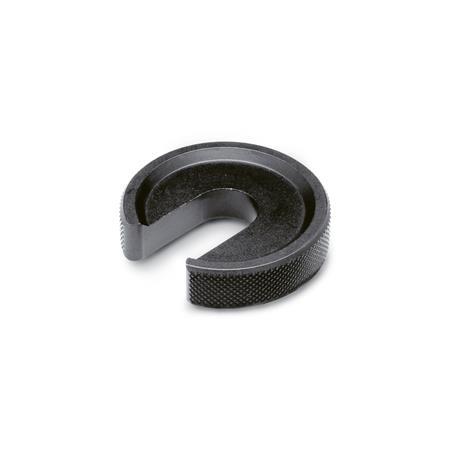

GN 183 C-Washers, Steel, blackened

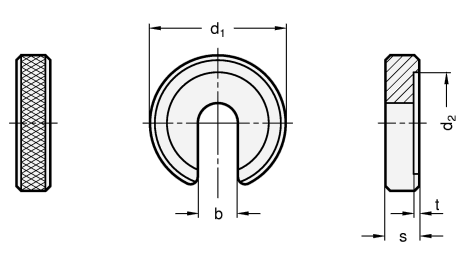

| d1 | b | d2 | s | t | for thread |
|---|---|---|---|---|---|
| 22 | 6,2 | 16 | 6 | 0,8 | M 6 |
| 28 | 8,3 | 21 | 7 | 1 | M 8 |
| 34 | 10,4 | 25 | 8 | 1,2 | M 10 |
| 40 | 12,5 | 30 | 9 | 1,8 | M 12 |
| 56 | 16,5 | 37 | 12 | 1,8 | M 16 |
Filter combination produces no result.
Specification
Steel
RoHS
- Case-hardened
- Blackened
RoHS
Information
C-Washers GN 183 maybe installed without the removal of the nut from the stud.
In terms of dimensions they are almost identical to C-Washers DIN 6372.
| How to order |
| ||||
GN 183-34-10,4 |
