Tube Aluminum / Stainless Steel, Mounting from the Operator's Side

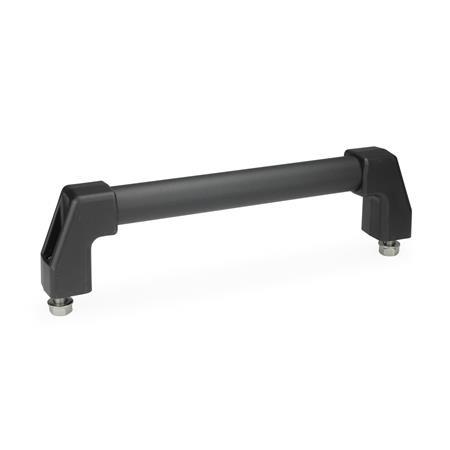

GN 667 Cabinet U-Handles
| d1 | l1 ±1 | a | b | d2 | h1 | h2 | l2 | l3 | l4 | l5 max. | l6 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 180 | 200 | 250 | 300 | 350 | 400 | - | 48 | 28 | M 8 | 45 | 58 | 19 | 10 | 25 | 6 | 9,5 |
| 30 | 300 | 350 | 400 | 500 | 600 | 700 | 1000 | 57 | 38 | M 10 | 60 | 78 | 23 | 12 | 35 | 9 | 14,5 |
Filter combination produces no result.
Specification
Handle tube Ø 20 x 1,5 / Ø 30 x 1,5
Aluminum
ground, matte shinyNG
End pieces plastic
Technopolymer (Polyamide PA)
Socket cap screws DIN 912
Hexagon nuts ISO 4032
Washers DIN 125
Stainless steel AISI 304
RoHS
Aluminum
- Powder coated
Black, RAL 9005, textured finishSW
- Anodized, natural colorEL
ground, matte shinyNG
End pieces plastic
Technopolymer (Polyamide PA)
- Powder fiber reinforced
- Temperature resistant up to 100 °C
- Black, matte finish
Socket cap screws DIN 912
Hexagon nuts ISO 4032
Washers DIN 125
Stainless steel AISI 304
RoHS
Information
The handle tube of the cabinet U-handles GN 667 can be mounted without any further machining, allowing special lengths to be realised easily.
For handles with longer spans or greater loads, supports are available on request.
| How to order |
| ||||||
GN 667-20-200-EL |
