Integrated Pendulum System, Digital / Analog Indication

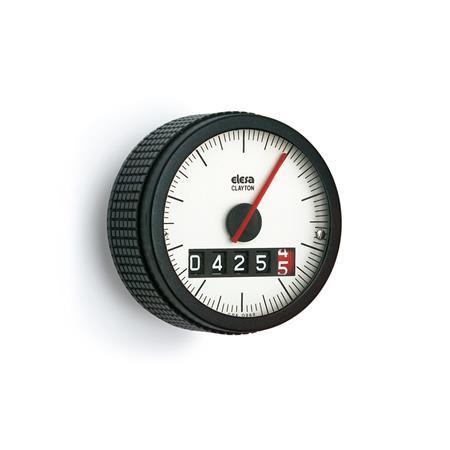

GN 5343 Hand Knobs with Position Indicator, plastic
Type
| R | Numbers ascending clockwise |
| L | Numbers ascending anti-clockwise |

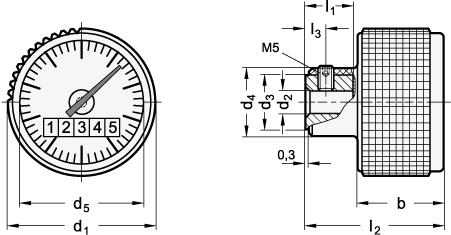

| d1 | d2 H7 Bore | Counter | Scale Number of graduations | Indication precision of the pointer | d3 | d4 | d5 | b | l1 | l2 | l3 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 70 | B 10 | 0000.2 | 20 | 0,01 | 22 | 28 | 60 | 33 | 17 | 52 | 6 |
| 70 | B 10 | 0000.5 | 50 | 0,01 | 22 | 28 | 60 | 33 | 17 | 52 | 6 |
| 70 | B 10 | 0001.0 | 100 | 0,01 | 22 | 28 | 60 | 33 | 17 | 52 | 6 |
| 70 | B 10 | 0002.0 | 40 | 0,05 | 22 | 28 | 60 | 33 | 17 | 52 | 6 |
| 70 | B 10 | 0002.5 | 50 | 0,05 | 22 | 28 | 60 | 33 | 17 | 52 | 6 |
| 70 | B 10 | 0003.0 | 60 | 0,05 | 22 | 28 | 60 | 33 | 17 | 52 | 6 |
| 70 | B 10 | 0004.0 | 80 | 0,05 | 22 | 28 | 60 | 33 | 17 | 52 | 6 |
| 70 | B 10 | 0005.0 | 100 | 0,05 | 22 | 28 | 60 | 33 | 17 | 52 | 6 |
Specification
- Glass fiber reinforced
- Black, matte finish
Sight glass plastic (Polyamide PA-T)
- Glass clear, ageing proof
- Shock resistant
Hand knob / Sight glass
- Temperature resistant up to 100 °C
- Oil and solvent proof
(not suitable for alcohol)
Pointer plastic, red
Scale aluminum
- Matte anodized
- Graduation black
Counter
- Numbers white
- Number wheels integers black
decimals red
Bushing
Steel, blackened
Protection class IP 67
RoHS
Information
On hand knobs with position indicator GN 5343 the measuring gear is built into the knob i.e. hand knob and indicator are one integrated unit. Hence they are good value for money. In addition they impress by their good design.
Furthermore hand knob, pointer spindle and sight glass are manufactured as one integrated unit and ultrasonically welded. They are absolutely leak tight against spray water and corrosion proof (protection to IP67).
The pendulum system is fitted with ball bearings to give a precise reading and it can be used in temperatures of up to 60° with suitable spindles.
One complete revolution of the red pointer corresponds to one revolution of the spindle. This gives a very accurate reading and, combined with the digital indication from the counter, it is very simple to read.
Installation sequence
1. Turn the spindle to the starting point (0-position).
2. Move the unmounted hand knob to the 0-position.
3. Install the position indicator to the spindle and fix it with the screw.
see also...
| How to order |
| ||||||||
GN 5343-70-B10-0002.0-R |
-
-
