GN 709.3 Clamping Pads, Steel

Type

B	Smooth contact face
R	Serrated contact face
BR	Smooth contact face, with automatic return
RR	Serrated contact face, with automatic return

Show filter

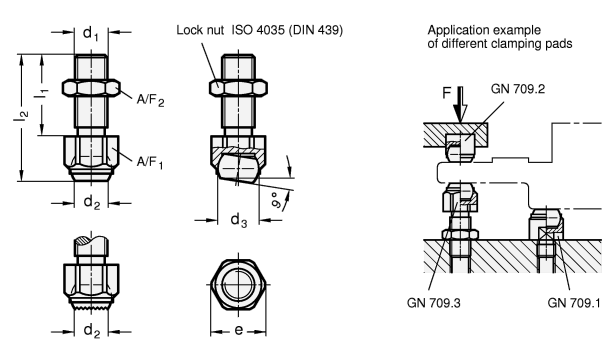

A/F₁	d₁	d₂	d₃ Ball-Ø	e	l₁	l₂	A/F₂	Static load max. in kN

13	M 8	5,8	8,5	14,5	25	36,6	13	8
17	M 10	8,6	12	19	30	45,7	17	8
17	M 12	8,6	12	19	35	50,7	19	15
24	M 16	10,5	16	27	40	60,7	24	25
30	M 20	20	25	33	50	77,3	30	90
36	M 24	20	25	40	70	100	36	90
46	M 30 x 1,5	34,6	40	51	65	100	46	165

Filter combination produces no result.

Specification

Steel

Tempered
Phosphated

Ball
Steel
Hardened, plain

Spring element
Plastic (PUR)
(Type BR / RR)

Hexagon nut ISO 4035 (DIN 439)
Steel
Blackened

Elastomer Characteristics

RoHS

Information

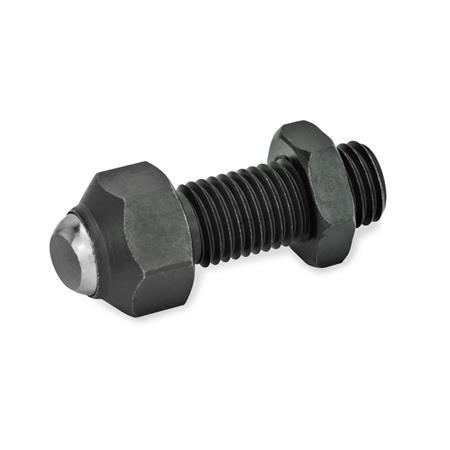

Clamping pads GN 709.3 are used as movable supports or plungers for clamping workpieces. They can also be used as stops.

After the clamping process, the contact surfaces of clamping pads automatically reset themselves to their initial position. This prevents the bearing from jamming in an inclined position when the workpiece is inserted.

The bearing can be rotated by a maximum of 9° and is secured against further rotation.
