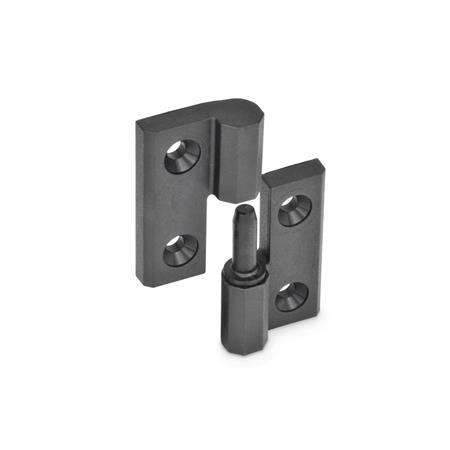

Plastic, Detachable
GN 337.1 Hinges
ELESA original design CFMY.
Type

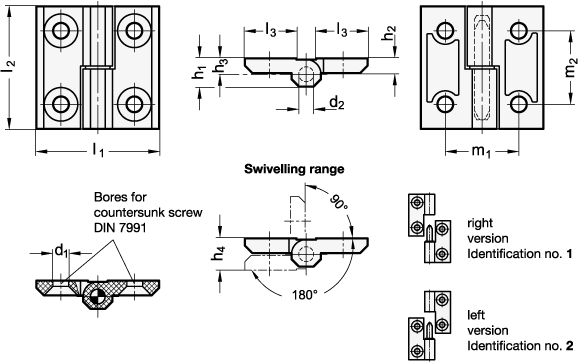

| A | 2x2 bores for countersunk screws |
Identification no.
| 1 | fixed bearing (pin) right |
| 2 | fixed bearing (pin) left |
| l1 | l2 | d1 +0,5 | d2 | h1 | h2 | h3 | h4 | l3 | m1 ±0,25 | m2 ±0,25 |
|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 40 | 4 | 4 | 9 | 5 | 5,5 | 11 | 14 | 25 | 25 |
| 50 | 50 | 6 | 6 | 11,5 | 6 | 6,5 | 13 | 18 | 30 | 30 |
| 60 | 60 | 6 | 6 | 15 | 8 | 8,5 | 17 | 26 | 36 | 36 |
| 60 | 60 | 8 | 8 | 15 | 8 | 8,5 | 17 | 26 | 36 | 36 |
Filter combination produces no result.
Specification
Plastic (Polyamide PA-HP)
Pin
Plastic (Polyamide PA)
Glass fiber reinforced
RoHS
- Glass fiber reinforced
- Temperature resistant up to 100 °C
- Black, matte finishSW
Pin
Plastic (Polyamide PA)
Glass fiber reinforced
RoHS
Information
see also...
| How to order |
| ||||||||||||
GN 337.1-60-60-8-A-1-SW |
