Accessory for Profile Systems
GN 507 T-Nuts

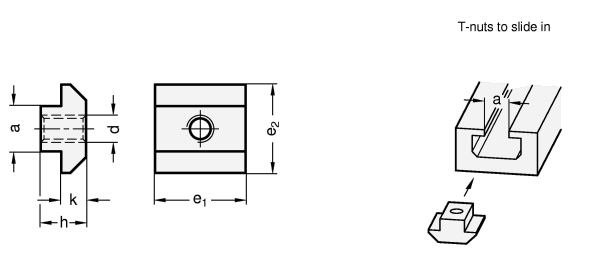

| a -0,1/-0,3 | d | e1 | e2 | h | k +0,1 | |||
|---|---|---|---|---|---|---|---|---|
| 8 | M 4 | M 5 | M 6 | M 8 | 16 | 16 | 6 | 4,2 |
| 10 | M 4 | M 5 | M 6 | M 8 | 20 | 19,5 | 10,5 | 5,5 |
Filter combination produces no result.
Specification
Steel
Zinc plated, blue passivated
RoHS
Zinc plated, blue passivated
RoHS
Information

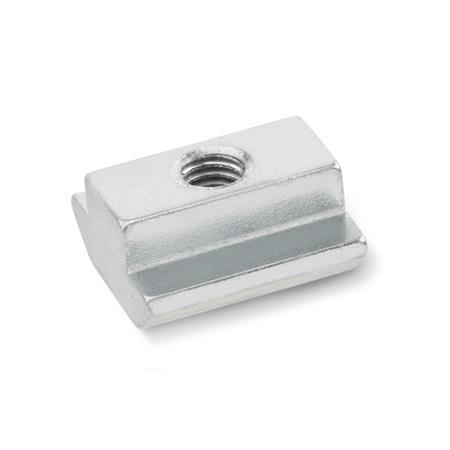

T-nuts GN 507 have been specially designed for use on extrusion rails.
| How to order |
| ||||
GN 507-8-M4 |
