GN 806 Protective Caps, with / without Threaded bush
Type
| A | Protective cap (without nut) |

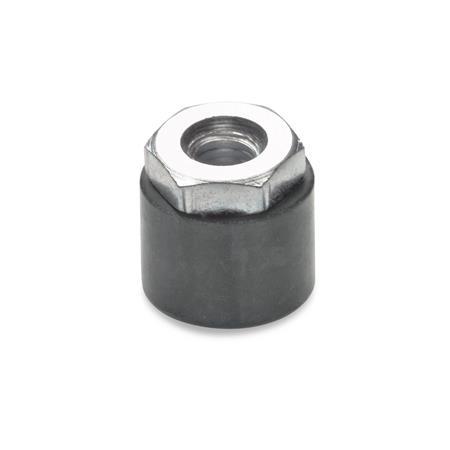

| B | Protective cap with threaded bushing |
| d1 | d2 | d3 | d4 | h1 | h2 | A/F | t1 | t2 | t3 min. |
|---|---|---|---|---|---|---|---|---|---|
| 11* | M 4 | 5,5 | 8,2 | 6,5 | - | - | 1 | 4 | - |
| 12 | M 5 | 7 | 9,3 | 8 | 11 | 10 | 1,5 | 5,3 | 6 |
| 15 | M 6 | 8,5 | 11,5 | 10 | 14 | 12 | 2 | 6 | 7 |
| 19 | M 8 | 11 | 15 | 13 | 18 | 16 | 2 | 7,5 | 8,5 |
| 24 | M 10 | 13 | 20 | 16 | 23,5 | 21 | 2,2 | 9,2 | 10 |
| 26 | M 12 | 16 | 22 | 19 | 26 | 22 | 2,5 | 10,5 | 12 |
Filter combination produces no result.
* Protective caps d1 = 11 are not available in Type B (with a threaded bush)
Specification
Rubber (CR)
Threaded bushing
Steel
Zinc plated, blue passivated
RoHS
- Hardness 85±5 Shore A
- Black
Threaded bushing
Steel
Zinc plated, blue passivated
RoHS
Information
Protective caps GN 806 can be used with hexagon screws ISO 4017 or together with threaded pins type B as thrust pins with soft clamping head surface, or as soft end stop bolts.
A typical application is in conjunction with toggle clamps (product group 2.4).
Clamping bolts GN 807 specified in this latter group consists of hexagon screws with protective caps and two nuts.
| How to order |
| ||||
GN 806-24-B |
RoHS compliant:
-
-
Weight:
-
-
