for Position Indicators GN 9053 / GN 9153

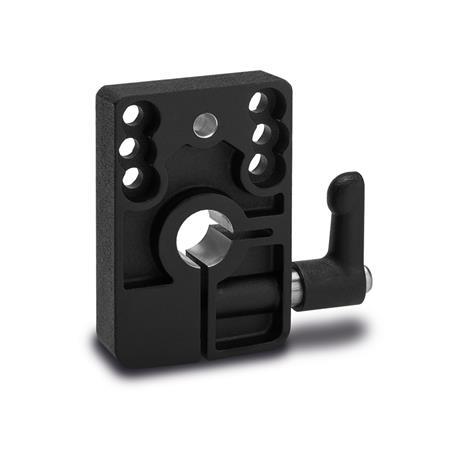

GN 9053.6 Clamping Plates, zinc die casting
| b | d1 F9 | d2 | l1 | l2 | l3 | l4 | l5 | m1 | m2 | m3 | m4 | m5 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | B 12 | B 14 | B 15 | B 16 | B 20 | 5,5 | 73 | 40,5 | 18 | 24,5 | 30 | 34 | 36 | 33,6 | 25 | 17 |
Filter combination produces no result.
Specification
Zinc die casting
Powder coated
Black, textured finish
Adjustable hand lever GN 302.1
RoHS
Powder coated
Black, textured finish
Adjustable hand lever GN 302.1
- Zinc die casting
Powder coated
Black, RAL 9005, textured finish - Threaded insert
Stainless steel AISI 303
RoHS
Information
Clamping plates GN 9053.6 are used in connection with position indicators GN 9053 and GN 9153. The mounting holes support typical hole patterns.
In a simpler way and without large construction and installation effort these spindles can, after adjustment, be clamped and locked.
At the same time these plates are fitted with the bore Ø 6,1 to accept the torque limiter for the position indicator.
The clamping plate can be installed so that the hand lever is positioned either to the right or the left.
| How to order |
| ||||
GN 9053.6-48-B12 |
RoHS compliant:
-
-
Weight:
-
-
