with End Limit Switch
GN 251.2 Setting Bolts
Version
| S | Normally open |
| O | Normally closed |
| d | l1 | e | k | l2 max. | l3 | s |
|---|---|---|---|---|---|---|
| M 6 | 21 | 11,5 | 4 | 3 | 3,6 | 10 |
| M 8 | 25 | 15 | 7 | 4 | 5 | 13 |
| M 10 | 25 | 19,6 | 7 | 4 | 6 | 17 |
Filter combination produces no result.
Specification
Bolt
Steel
Hexagon nuts steel
End limit switch
Supply cable PVC:
Protection class IP 40
https://www.youtube.com/watch?v=IeuBPZmczsQ
Operating instruction GN 251.2
Strength Values of Screws
IP Protection Classes
RoHS
Steel
- Property class 5.8
- Hexagon head hardened to HRC 45
- Nickel plated
Hexagon nuts steel
- Nickel plated
End limit switch
- Voltage: 5 ... 24 V DC
- Switching load recom: 5 ... 10 mA
- Switching load: 20 mA DC max.
- Life expectancy: 3 million operations
- Temperature range:
-10 °C ... +80 °C - Load: ≈1 N
Supply cable PVC:
- Ø 3; 2-phase, ≈2 meters long
- Max. tensile load 30 N
- Gray for type S
(normally open) - Black for type O
(normally closed)
Protection class IP 40
https://www.youtube.com/watch?v=IeuBPZmczsQ
Operating instruction GN 251.2
Strength Values of Screws
IP Protection Classes
RoHS
Information

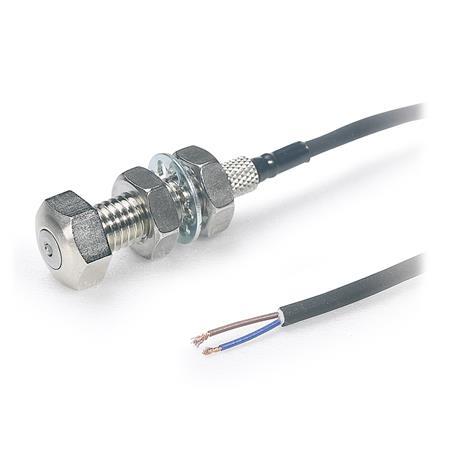

Setting bolts GN 251.2 are supplied with a hardened round head which serves as a firm end stop.
The two hexagon nuts as lock nuts enable precise positioning.
When the workpiece contacts the bolt head, an electrical signal is transmitted by means of the end limit switch.
By means of the knurled screw, the end limit switch can be installed resp. taken out without having the need to loosen the setting bolt.
Operating instructions showing more important technical information are included with every setting bolt.
