with Ball Pin for Thrust Pads GN 631 / GN 631.5
GN 632.5 Stainless Steel Grub Screws

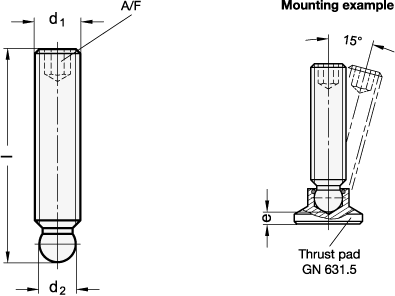

| d1 | Length l | d2 +0,05 | A/F | Thrust pad GN 631 / GN 631.5 d1 - e | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M 6 | 30 | 40 | 50 | - | 4,5 | 3 | 15 - 3,6 | 18 - 5,2 | 21 - 6 | 25 - 6,5 | 32 - 7 | - | - |
| M 8 | 25 | 40 | 50 | 63 | 6,1 | 4 | 15 - 2,5 | 18 - 4,2 | 21 - 5 | 25 - 5,5 | 32 - 6 | 40 - 8 | 50 - 10,4 |
| M 10 | 40 | 50 | 63 | 80 | 7,8 | 5 | 18 - 3,8 | 21 - 4,3 | 25 - 4,6 | 32 - 5 | 40 - 7 | 50 - 9,3 | - |
| M 12 | 40 | 63 | 80 | 100 | 9,4 | 6 | 21 - 3,4 | 25 - 3,6 | 32 - 4,2 | 40 - 6,2 | 50 - 8,7 | - | - |
Filter combination produces no result.
Specification
Information

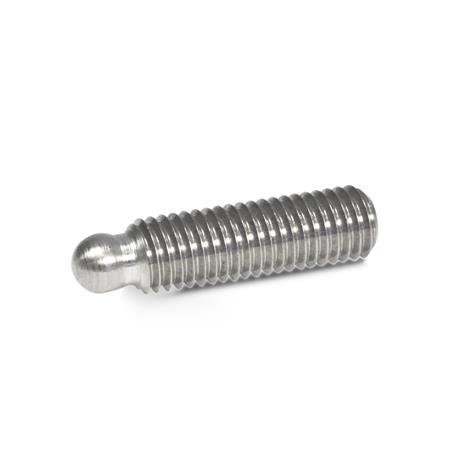

Stainless steel grub screws GN 632.5 with ball point are as a rule used with thrust pads GN 631 / GN 631.5.
The ball Ø d2 is smaller than the thread core Ø, which allows fitting over the ball end.
The combination of grub screws GN 632.5 and thrust pads GN 631 / GN 631.5 with gripping elements easily makes clamping screws of many different types.
| How to order |
| ||||
GN 632.5-M8-63 |
