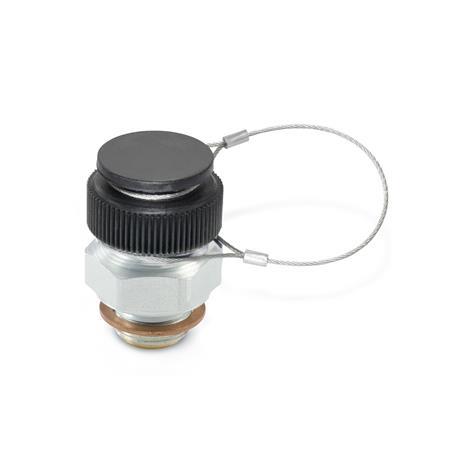

GN 880 Oil Drain Valves

Type

K	With plastic protective cap and retaining cable

Show filter

d₁ Steel		Brass		d₂	d₃ Connection thread for GN 880.1	d₄	e ≈	l₁	l₂	l₃	A/F

M 14 x 1,5	G 1/4	-	-	20	M22 x 1,5	26	25,4	7,5	10,5	31	22
M 16 x 1,5	-	-	-	22	M22 x 1,5	26	25,4	7,5	10,5	31	22
-	G 3/8	-	-	23	M22 x 1,5	26	25,4	7,5	10,5	31	22
M 18 x 1,5	-	-	-	24	M22 x 1,5	26	25,4	8,5	10,5	31	22
M 20 x 1,5	-	-	-	26	M22 x 1,5	26	31,2	8,5	10,5	31	27
M 22 x 1,5	-	-	-	27	M26 x 1,5	30	31,2	8,5	12	32	27
-	G 1/2	-	-	26	M26 x 1,5	30	31,2	8,5	12	32	27
-	-	M 24 x 1,5	-	29	M26 x 1,5	30	34,7	9	12	32	30
-	-	M 26 x 1,5	G 3/4	32	M26 x 1,5	30	37	9	12	32	32
-	-	M 30 x 1,5	-	36	M26 x 1,5	30	41,6	9	12	32	36
-	-	-	G 1	39	M26 x 1,5	30	47,3	9	12	32	41

Filter combination produces no result.

Specification

Valve body

SteelST
Zinc plated, bue passivated
BrassMS

Valve plate

Brass
O-ring rubber FPM (Viton^®)

Sealing disk DIN 7603 A
Copper

Protective cap
Plastic (Polyamid PA)

Retaining cable
Stainless steel

Elastomer Characteristics

RoHS

Accessory

Mounting Nuts GN 7430

On request

Other materials

Information

Oil drain valves GN 880 may be used for draining non-pressurised oil. As well conditionally as for vacuum drainage.

The flow volume (l/min.) depends on the viscosity of the medium, the filling quantity and the temperature. Guidance values available on request.

Other features are:

- Easy and safe handling
- Optimum flow rate
- High pressure resistance (up to 100 bar)
- High temperature resistance (-30 °C to +120 °C, short period up to 180 °C)
- 100 % seal-tight tested
