Steel, Blackened

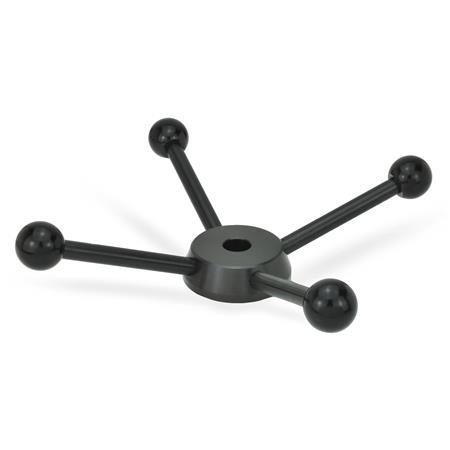

GN 213 Turret Levers
Bore code
| B | Without keyway |
| K | With keyway |
| V | With square |
| d1 | d2 Bore H7 Square H11 | d3 | d4 | d5 | h1 | h2 | h3 ≈ | Length l ≈ |
|---|---|---|---|---|---|---|---|---|
| 50 | 12 | 28 | 8 | 20 | 26 | 9 | 53 | 82 |
| 55 | 14 | 30 | 10 | 25 | 28 | 10 | 61 | 96 |
| 60 | 15 | 32 | 10 | 25 | 30 | 11 | 64 | 96 |
| 65 | 16 | 35 | 12 | 30 | 32 | 12 | 71 | 110 |
| 72 | 18 | 40 | 12 | 32 | 36 | 14 | 80 | 124 |
| 80 | 20 | 44 | 14 | 35 | 40 | 16 | 89 | 138 |
| 100 | 24 | 54 | 16 | 40 | 52 | 24 | 113 | 170 |
Filter combination produces no result.
Specification
Steel
Blackened
Ball knobs DIN 319
Plastic, Duroplast
Black, shiny finish
RoHS
Blackened
Ball knobs DIN 319
Plastic, Duroplast
Black, shiny finish
RoHS
Information
| How to order |
| ||||||
GN 213-65-B16 |
