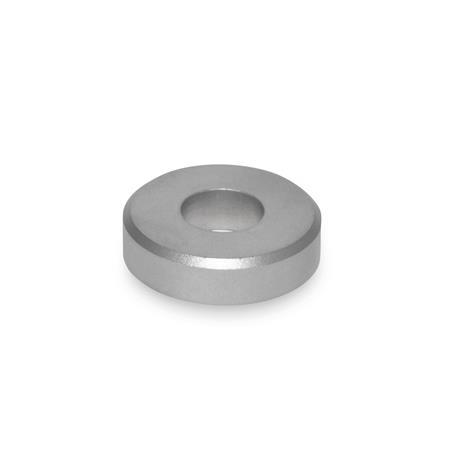

GN 6341 Stainless Steel Washers
Form

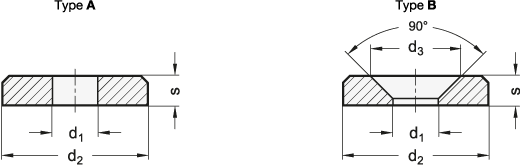

| A | With cylindrical bore |
| B | With bore for countersunk screw |
| d1 +0,5/+0,2 | d2 | d3 | s | |
|---|---|---|---|---|
| 4 | 10 | 13 | 8,4 | 2,5 |
| 5 | 13 | 16 | 10,5 | 3 |
| 6 | 15 | 20 | 12,6 | 4 |
| 8 | 20 | 26 | 16,8 | 5 |
| 10 | 25 | 32 | 21 | 6,5 |
| 12 | 30 | 40 | 25,2 | 7,5 |
Filter combination produces no result.
Specification
Information
Stainless steel washers GN 6341 are used mainly in mechanical machine and jig construction when washers DIN 125, DIN 9021 and DIN 6340 no longer meet requirements.
In particular, type B for countersunk screws is ideal for solid screw connections with a low construction height.
| How to order |
| ||||||||||
GN 6341-NI-8-26-B-MT |
