GN 235 Stainless Steel Hinges
Type
| H | Vertically adjustable |
| B | Horizontally adjustable |
| HB | Vertically and horizontally adjustable |
| D | With through-holes |
| DH | With through-holes, vertically adjustable |
| DB | With through-holes, horizontally adjustable |
| l1 D, DH, H | DB, HB | B | l2 | b | d1 | d2 | h1 | h2 | h3 | h4 | l3 D, DH, H | DB, HB, B | l4 D, DH, H, DB, HB | B | m1 | m2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 45 | 50 | 45 | 5,3 | 5,3 | 4 | 13 | 5 | 9,5 | 19 | 16 | 21 | 16 | 21 | 25 | 25 |
| 50 | 55 | 60 | 55 | 6,5 | 6,5 | 6 | 16,6 | 6 | 11,6 | 23,2 | 21 | 26 | 21 | 26 | 30 | 30 |
| 60 | 68 | 76 | 65 | 8,3 | 8,3 | 8 | 21,4 | 8 | 14,9 | 29,8 | 26 | 33,5 | 26 | 33,5 | 36 | 36 |
Filter combination produces no result.
Specification
Stainless steelNI AISI CF-8
Matte shot-blastedGS
Pin
Stainless steel AISI 316Ti
RoHS
Matte shot-blastedGS
Pin
Stainless steel AISI 316Ti
RoHS
Accessory
Stainless Steel Spacer Plates GN 2370Stainless Steel Plates GN 2372
Information

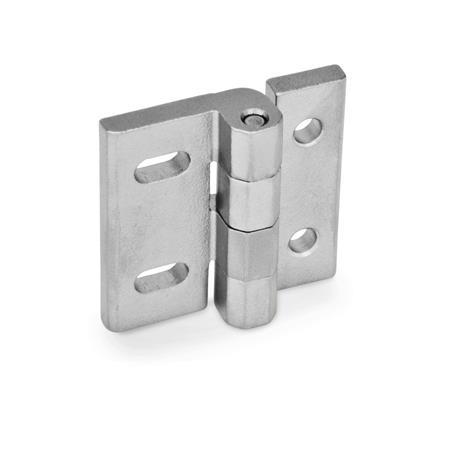

Stainless steel hinges GN 235 are adjustable in height or width along the slots, depending on the design, and are fastened with hex-head, oval-head or cylinder screws with a low head.
Thanks to sufficient space (installation space) available for screw heads and washers, the hinges can be opened by 180° without collision.
The hinge drill pattern corresponds with that of the GN 237 hinge family, which allows the hinges to be exchangeable.
see also...
| How to order |
| ||||||||||
GN 235-NI-45-45-DB-GS |
