Heavy Duty Steel-Housing, without Collar

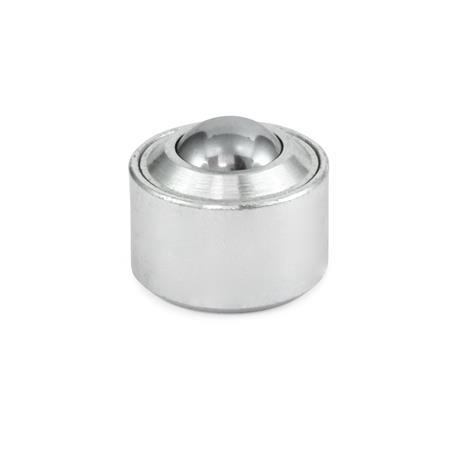

GN 509.4 Ball Transfer Units
| Size | d1 Ball | d2 ±0,08 | d3 Sheet steel cover | h1 ±0,3 | h2 ±0,3 | h3 | Load C in N |
|---|---|---|---|---|---|---|---|
| 8 | 7,9 | 18 | 18 | 12 | 2 | 5,1 | 120 |
| 12 | 12,7 | 22 | 22,2 | 17,5 | 5,5 | 7,7 | 200 |
| 15 | 15,8 | 24 | - | 20 | 5 | - | 500 |
| 22 | 22,2 | 36,5 | - | 30 | 6 | - | 1300 |
| 30 | 30,1 | 44,6 | - | 36,8 | 7,5 | - | 2500 |
| 45 | 44,4 | 62,6 | - | 53,5 | 13 | - | 6000 |
Filter combination produces no result.
Specification
Housing steelSBL
RoHS
- Turned
- Zinc plated, blue passivated
- Ball steel, blank
RoHS
On request
Plastic balls (Polyamide)
Stainless steel balls
Stainless steel housings
Stainless steel balls
Stainless steel housings
Information
Ball transfer units GN 509.4 are used on conveyer tracks. They assist a linear or rotary movement of heavy loads on a conveyer track.
They have no support collar, taking the load at the housing diameter d2 instead.
