Plastic

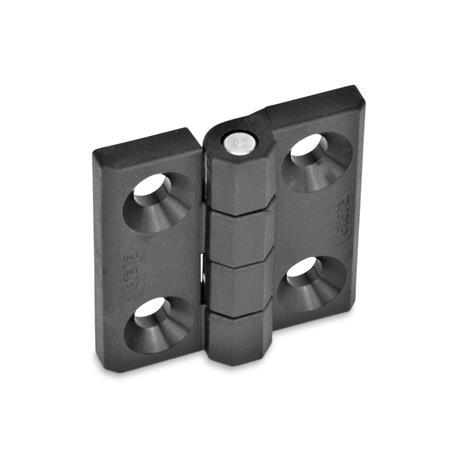

GN 237.1 Hinges
ELESA original design CFM.

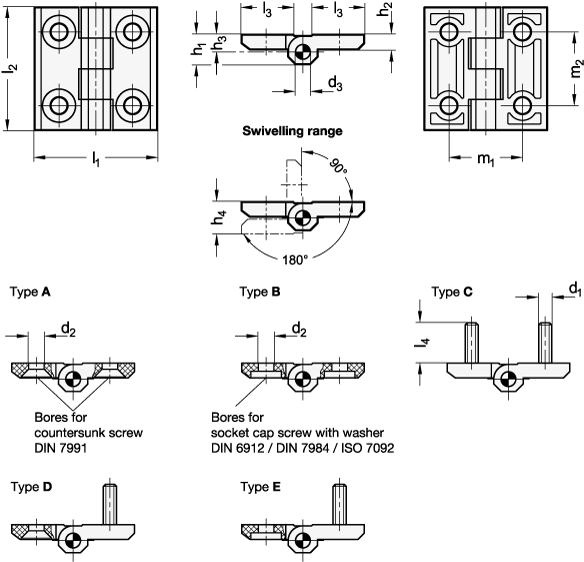

Type
| A | 2x2 bores for countersunk screws |
| B | 2x2 bores for socket cap screws |
| C | 2x2 threaded studs |
| D | 2x bores for countersunk screws / 2x threaded studs |
| E | 2x bores for socket head cap screws / 2x threaded studs |
| l1 | l2 | d1 | d2 | d3 | h1 | h2 | h3 | h4 ≈ | l3 | l4 | m1 ±0,2 | m2 ±0,2 | t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30* | 30 | - | 4,5 | 2,5 | 7 | 3,5 | 4 | 8 | 10,5 | - | 18 | 18 | 1,3 |
| 40 | 40 | M 5 | 5,5 | 4 | 9 | 5 | 5,5 | 11 | 14 | 12 | 25 | 25 | 1,7 |
| 50 | 50 | M 6 | 6,5 | 6 | 11,5 | 6 | 6,5 | 14 | 18 | 12 | 30 | 30 | 3 |
| 60 | 60 | M 8 | 8,5 | 8 | 15 | 8 | 8,5 | 18 | 21 | 14,5 | 36 | 36 | 4 |
Filter combination produces no result.
* only available in type A and type B
Specification
Plastic (Polyamide PA-HP)
Pin
Stainless steel AISI 303
Threaded studs
Steel, nickel plated
RoHS
- Glass fiber reinforced
- Temperature resistant up to 140 °C
- Black, matte finish
Pin
Stainless steel AISI 303
Threaded studs
Steel, nickel plated
RoHS
