DIN 98 Drehbare Ballengriffe, Stahl / Aluminium / Kunststoff

Drehbare Ballengriffe Stahl  Aluminium  Kunststoff DIN 98 thumbnail Zoom

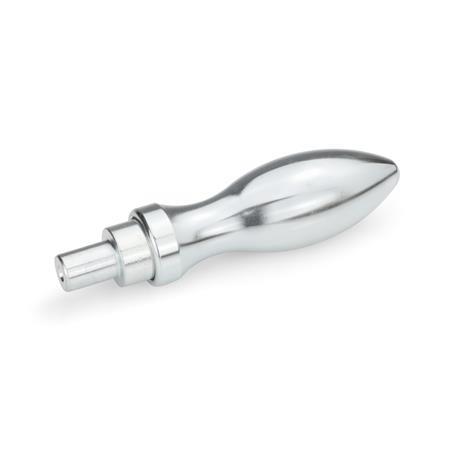

DIN 98 Drehbare Ballengriffe, Stahl / Aluminium / Kunststoff

Drehbare Ballengriffe Stahl  Aluminium  Kunststoff DIN 98
© Copyright
Rotaflex GmbH
Abbildung kann Abweichen

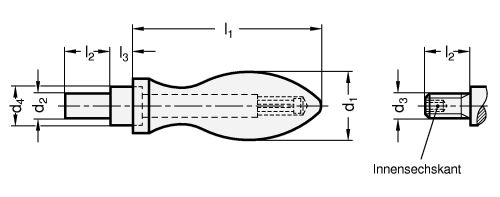

Drehbare Ballengriffe Stahl  Aluminium  Kunststoff DIN 98 Skizze


Form

Dmit zylindrischem Zapfen
Emit Gewindezapfen
d1d2 h8
Form D
ST / AL


KT
d3
Form E
ST / AL


KT
d4 h13l1l2l3sw
Innen-
sechskant
1677M 6M 61049115,53
2088M 8M 813611364
251010M 10M 1016751485
321313M 12M 1220952110,56
3616-M 16-2210626118
Filterkombination ergibt keine Treffer.

Ausführung

StahlST
verzinkt, blau passiviert

AluminiumAL
hochglanz poliert

KunststoffKT
Thermoplast (Polyamid PA)
  • temperaturbeständig bis 110 °C
  • schwarz, matt

Achsteil
Stahl
verzinkt, blau passiviert
RoHS

Hinweis

Drehbare Ballengriffe DIN 98 Form D werden unmontiert geliefert, d.h. das Griffteil ist lose beigelegt. Dadurch kann das Achsteil getrennt eingepresst bzw. vernietet werden.

Durch leichte Schläge mit einem Schonhammer in Achsrichtung wird das Griffteil auf der Achse so befestigt, dass es axial gehalten ist, dabei aber drehbar bleibt.

Bestellbeispiel
1Werkstoff
2d1
3Form
DIN 98-KT-32-D
